Jain Technology produces the most advanced and technologically superior ultrasonic flowmeters in Korea, and it is a Korean ultrasonic flowmeter specialized manufacturer that calibrates and inspects various flowmeters as an internationally accredited calibration organization.

The ultrasonic flowmeter currently being produced is a clamp-on ultrasonic transit time flowmeter developed for the first time in Korea and it is recognized for its technology and performance.

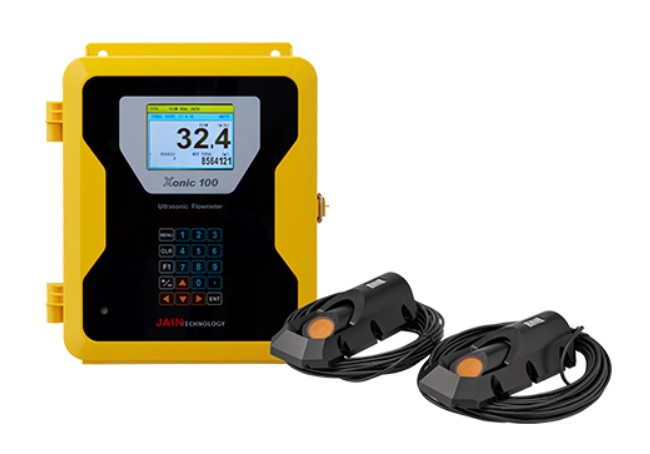

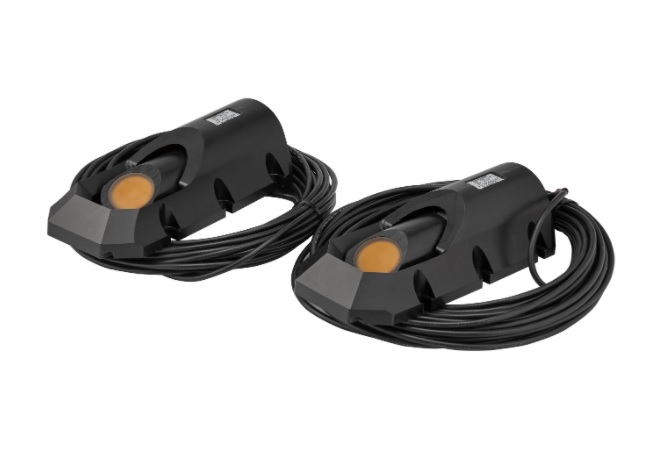

A clamp-on ultrasonic flowmeter XONIC-100L is an external wall-mounted type without pipe cutting, so there is no need to disconnect the water during installation or A/S.

In addition, there is no additional cost because it is easy to relocate and install the flowmeter due to changes in the water system or change of installation location. It supports 2 outputs of 4-20mA, 2 pulse outputs used as accumulated signals and alarm signals, and RS-232C for digital communication.

In particular, the measurement range of the minimum flow rate and maximum flow rate is very wide like over 500:1, so it can be used in sites with large flow changes. Especially, it measures very small flow rates that could not be measured with conventional mechanical and electronic flowmeters in the midnight time.

Also since the AR (Anti-Round) mode ultrasonic beam is used, it is possible to measure liquids containing a large amount of air bubbles or solid substances, and accurate measurements are possible even in the field with noise sources such as inverters.

The specifications of major products manufactured by Jain Technology are as follows.

1. Clamp-On Gas Flowmeter (Model No. : Xonic 100GC)
     - Application : Natural gas, fuel gas, biogas, air
     - Principle : Transit-Time
     - Velocity (bi-direction) : -30 m/s ~ 30 m/s
     - Min. Velocity : 0.05 m/s
     - Accuracy : 1.0%
     - Power : 12~24VDC

2. Open Channel Ultrasonic Flowmeter (Model No. : Xonic 100LM)
     - Application : River, stream, irrigation canal
     - Principle : AR(Anti-Round) Beam
     - Channel width : 1~30 meter
     - Channel shape : Rectangular, trapezoidal, round
     - Velocity : 0~10m/s
     - Accuracy : 1.0%
     - Power : 110~220VAC
